Road wrap

This motorway in Spain has a 450m soundproof wrapper to contain traffic noise

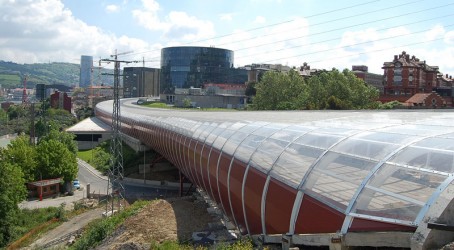

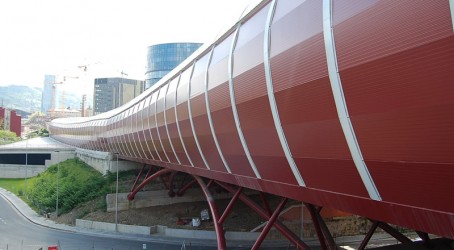

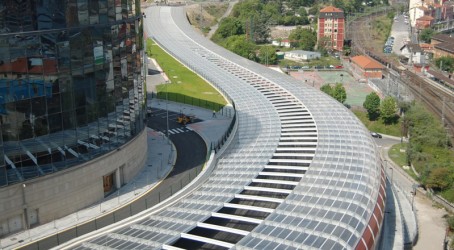

This four lane motorway in the Spanish city of Bilao is surrounded by a 450 metre noise proof wrapper to keep traffic sounds out of a nearby hospital. The structure is not classed as a tunnel as it its not completely enclosed. Its supported by 115 steel frames and is covered by plates of methacrylate and metal for acoustic insulation.

Motorway
Platform width: 25.3 metres
Lanes: 4 (2 in each direction)
Length of motorway under the sound wrap: 450 metres

Wrap structure
Support frames: 115 units
Distance between supports: 28 metres
Unit weight: 603.4 kg

Acoustic panels
Material: Methacrylate (15mm thickness)
Size of acoustic panels: 9.497 m2
Size of metal 'sandwich' panel: 3.799 m2

Budget
Approximate costs: €1.815.000

• Do you think the 'road wrapper' is a good idea and do you think it is called for in the UK? Or, do you consider it an unnecessary and costly extravagance?
  Share your views with us by commenting below.
