NPL sets new standards

Who

Engineers at the National Physical Laboratory (NPL) have developed a means of representing a 3D model ear to redefine the standard for an outer ear simulator used to measure sound in the way we perceive it.

 Technology

Human hearing is heavily dependent on the shape of the head and torso, and their interaction with sound reaching the ears allows for the perception of location within a 3D sound field. Head and torso simulators (Hats) are designed to model this behaviour, enabling measurements and recordings to be made to take account of the head-related transfer function  – the difference between a sound in free air and the sound as it arrives at the eardrum.

Hats are mannequins with built-in calibrated ear simulators that reproduce the acoustic properties of an average adult human head and torso. They are ideal for performing in-situ electro-acoustic tests on telephone handsets (including mobile and cordless), headsets, audio-conference devices, microphones, headphones, hearing aids and hearing protectors.

Critically, the shape of the pinna, a part of the outer ear, has a large effect on the organ’s behaviour and as a result it is defined for Hats by its own standard (IEC TR 60959:1990) to provide consistency across measurements. However, this standard defines the shape of the pinna through a series of 2D cross-sectional profiles. This form of specification and definition has on occasion proven to be an inadequate guide for manufacturing processes.

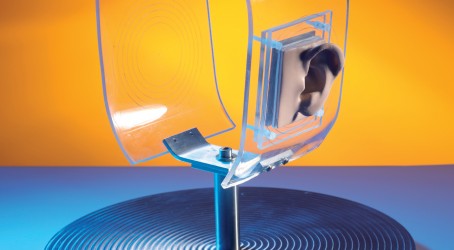

The acoustics team at NPL teamed up with the National Freeform Centre to redefine the standard through an online 3D CAD specification. A model ear was measured using a coordinate-measuring machine with laser scanner to produce a 3D scan of the ear, which could then be used to provide manufacturers with a more practical specification for reproduction and a standard that is easily comparable with similar non-contact freeform measurement techniques.

Application

Ian Butterworth, an engineer at NPL, said: “Having a 2D pinna in an artificial ear has some inherent frequency limitations. When sound spreads through structures like narrow tubes, annular slits or over sharp corners, noticeable thermal and viscous effects take place causing further departure from the lumped parameter model.

“The new standard for the 3D model has been developed to give proper consideration to these effects. We worked with the National Freeform Centre, experts in measuring items that are unconventional in shape or design, to develop the new standard, which will now help manufacturers develop better products.”
